Hire heavy duty pit boxes

At Manhole Form Hire, we’re able to provide you with heavy duty pit boxes which are ideal for creating access chambers. Offering a high level of customisability, these panels come in various lengths alongside our manhole form hire options. Our team services across Australia, including Queensland, New South Wales, and Victoria

Contact Us
Heavy duty pit box

Our range of heavy duty pit boxes

Heavy duty pit box
Heavy duty pit box

900 Heavy Duty Corners

Button
Heavy duty pit box

1500 Heavy Duty Panels

Button
Heavy duty pit box

900 Heavy Duty Panels

Button

Hire rates

1500H Heavy Duty Corners

Filter Width Daily Rate 3-Day Rate Weekly Rate
1500, Heavy, Corner Inner Cnr 1500h $36.00 $108.00 $144.00
1500, Heavy, Corner Outer Cnr 150 Wall 1500h $33.60 $100.80 $134.40
1500, Heavy, Corner Outer Cnr 200 Wall 1500h $36.70 $110.10 $146.80

900H Heavy Duty Corners

Filter Width Daily Rate 3-Day Rate Weekly Rate
900, Heavy, Corner Inner Cnr 900h $21.50 $64.50 $86.00
900, Heavy, Corner Outer Cnr 150 Wall 900 $20.20 $60.60 $80.80

1500H Heavy Duty Panels

Filter Width Daily Rate 3-Day Rate Weekly Rate
1500, Heavy, Panel 150 $3.60 $10.80 $14.40
1500, Heavy, Panel 400 $9.60 $28.80 $38.40
1500, Heavy, Panel 450 $9.60 $28.80 $38.40
1500, Heavy, Panel 500 $12.00 $36.00 $48.00
1500, Heavy, Panel 600 $14.30 $42.90 $57.20
1500, Heavy, Panel 700 $14.80 $44.40 $59.20
1500, Heavy, Panel 900 $21.50 $64.50 $86.00
1500, Heavy, Panel 1200 $28.60 $85.80 $114.40
1500, Heavy, Panel 1500 $36.00 $108.00 $144.00
1500, Heavy, Panel 1800 $43.20 $129.60 $172.80
1500, Heavy, Panel 2100 $50.40 $151.20 $201.60

900H Heavy Duty Panels

Filter Width Daily Rate 3-Day Rate Weekly Rate
900, Heavy, Panel 150 $2.20 $6.60 $8.80
900, Heavy, Panel 400 $5.80 $17.40 $23.20
900, Heavy, Panel 450 $5.80 $17.40 $23.20
900, Heavy, Panel 500 $7.20 $21.60 $28.80
900, Heavy, Panel 600 $8.60 $25.80 $34.40
900, Heavy, Panel 700 $9.60 $28.80 $38.40
900, Heavy, Panel 900 $13.00 $39.00 $52.00
900, Heavy, Panel 1200 $17.30 $51.90 $69.20
900, Heavy, Panel 1500 $21.60 $64.80 $86.40
900, Heavy, Panel 1800 $25.90 $77.70 $103.60
900, Heavy, Panel 2100 $30.30 $90.90 $121.20

Manhole Form Hire has the custom heavy duty pit boxes you need for your unique project. Hire with us today.

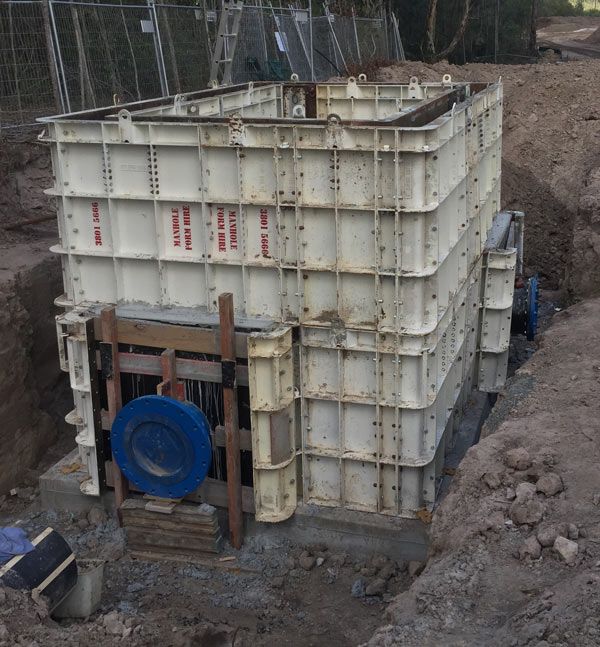

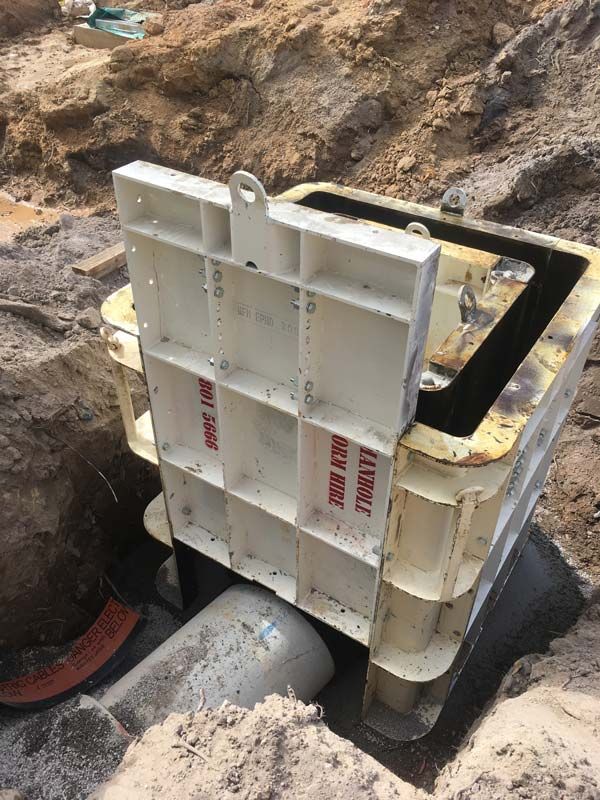

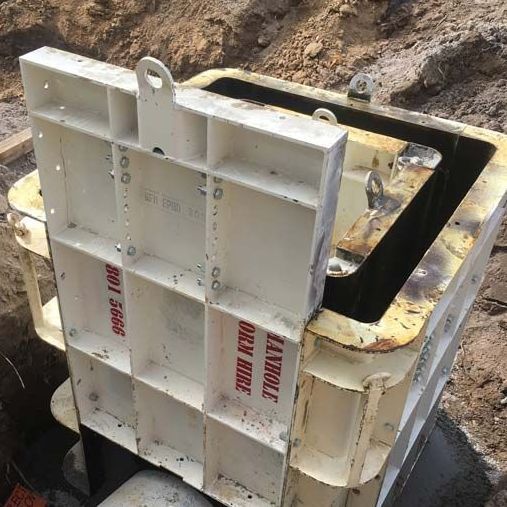

Our heavy duty pit boxes offer the flexibility you need

Water management and waste management systems for civil infrastructure projects across Australia are beginning to require more space to be built and housed. Manhole Form Hire’s heavy duty pit boxes are perfect for helping you create access chambers to house risers, pumps, and filters, to create retention basins and protect other critical items of plumbing hardware.


Our heavy duty pit boxes are comprised of 1.5 H panels and corners of varying lengths. They also have the ability to offset individual wall panels for different sizes of inlet and outlet pipes and the ability to build protrusions and recesses into the structure.


These large pit box options can also accommodate the hydrostatic forces and deflection expected at 3.0 H with up to a 300mm wall as specified in AS 4100-1990 Steel Structures when concrete is placed in accordance with AS 1170.1-2002 SAA Loading Code. Our heavy-duty pit boxes now come in 900H. That enables combinations of 900H and 1500H to achieve 900, 1500, 1800, 2400, 2700 and 3000H.

Hire heavy duty pit boxes

In Need Of Advice

Speak with one of our team members to guide you through all the best options to suit your project.

Why choose Manhole Form Hire?

If you're in the market for a heavy duty pit box for your construction project, we have just the solution for you. Our pit boxes are designed to be reliable and cost-effective, making them ideal for civil or council projects. With a range of customisable options, these heavy duty pit boxes are a helpful tool for any job site. We also offer a range of other products for your manhole installation needs.
