Hire standard manhole forms

Build your own circular inspection chambers and manholes using Manhole Form Hire’s standard manhole forms. We have an extensive range of adaptable form sizes and pour boards that cover every authority and council specification required. Our team services across Australia, including Queensland, New South Wales, and Victoria.

Contact Us
Standard drum and pour board

Our range of standard manhole forms

Manhole Form Hire - standard form and pour board

Inner drums

Button

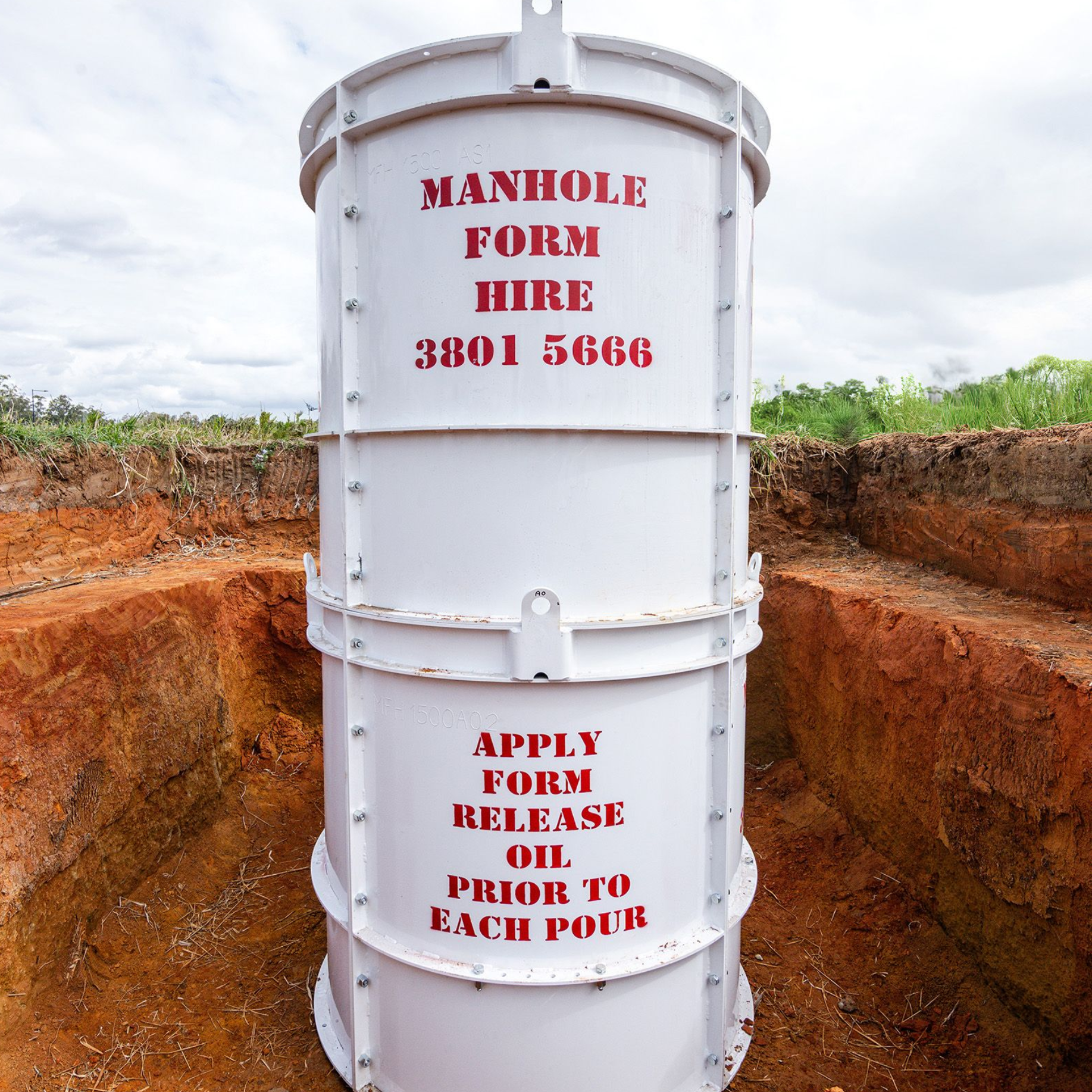

Inner and outer manhole drums

Outer drums

Button

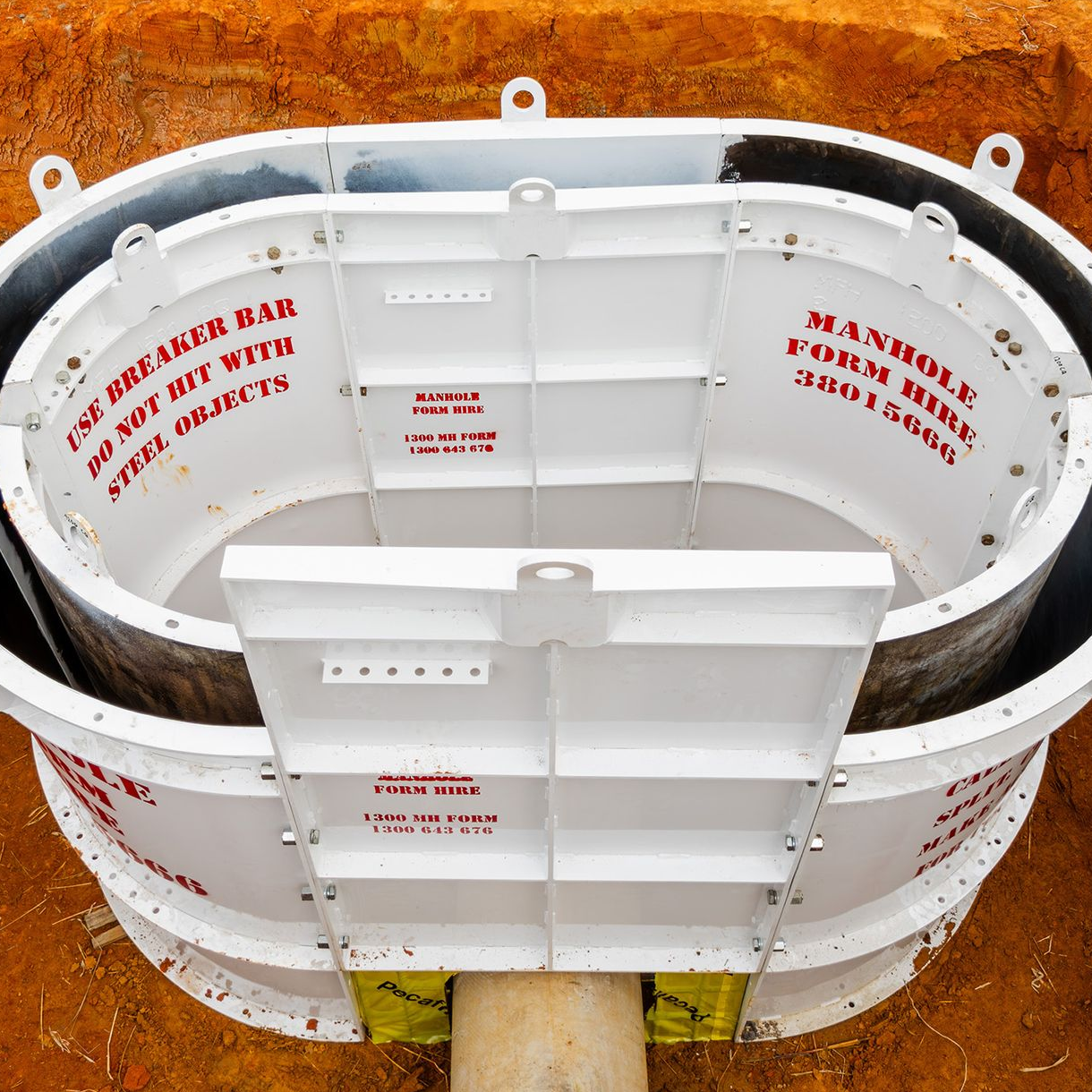

Manhole Form Hire drum and pour boards extension

Pour boards

Button
Manhole Form Hire drum and pour boards extension

Hire rates

Inner Drums 1500H

Filter Diameter Daily Rate 3-Day Rate Weekly Rate
Inner, 1500 900 $58.70 $176.10 $234.80
Inner, 1500 1050 $68.40 $205.20 $273.60
Inner, 1500 1200 $78.00 $234.00 $312.00
Inner, 1500 1350 $87.70 $263.10 $350.80
Inner, 1500 1500 $97.20 $291.60 $388.80
Inner, 1500 1650 $105.10 $315.30 $420.40
Inner, 1500 1800 $112.80 $338.40 $451.20
Inner, 1500 2000 $122.50 $367.50 $490.00
Inner, 1500 2100 $129.70 $389.10 $518.80
Inner, 1500 2400 $136.90 $410.70 $547.60
Inner, 1500 2450 $142.80 $428.40 $571.20
Inner, 1500 2700 $162.00 $486.00 $648.00
Inner, 1500 3000 $181.30 $543.90 $725.20
Inner, 1500 3600 $193.70 $581.10 $774.80
Inner, 1500 4000 $197.90 $593.70 $791.60
Inner, 1500 4500 $210.00 $630.00 $840.00
Inner, 1500 5000 $220.30 $660.90 $881.20

Inner Drums 1200H

Filter Diameter Daily Rate 3-Day Rate Weekly Rate
Inner, 1200 900 $48.00 $144.00 $192.00
Inner, 1200 1050 $55.20 $165.60 $220.80
Inner, 1200 1200 $62.40 $187.20 $249.60
Inner, 1200 1350 $69.50 $208.50 $278.00
Inner, 1200 1500 $76.80 $230.40 $307.20
Inner, 1200 1800 $84.10 $252.30 $336.40
Inner, 1200 2400 $117.50 $352.50 $470.00

Outer Drums 1500H

Filter Diameter Daily Rate 3-Day Rate Weekly Rate
Outer, 1500 1150 $61.20 $183.60 $244.80
Outer, 1500 1200 $61.20 $183.60 $244.80
Outer, 1500 1350 $65.90 $197.70 $263.60
Outer, 1500 1450 $75.50 $226.50 $302.00
Outer, 1500 1500 $75.50 $226.50 $302.00
Outer, 1500 1600 $85.10 $255.30 $340.40
Outer, 1500 1650 $85.10 $255.30 $340.40
Outer, 1500 1700 $85.10 $255.30 $340.40
Outer, 1500 1800 $94.90 $284.70 $379.60
Outer, 1500 1950 $104.60 $313.80 $418.40
Outer, 1500 2000 $104.60 $313.80 $418.40
Outer, 1500 2100 $115.30 $345.90 $461.20
Outer, 1500 2200 $126.10 $378.30 $504.40
Outer, 1500 2250 $126.10 $378.30 $504.40
Outer, 1500 2300 $126.10 $378.30 $504.40
Outer, 1500 2400 $131.90 $395.70 $527.60
Outer, 1500 2450 $131.90 $395.70 $527.60
Outer, 1500 2550 $134.40 $403.20 $537.60
Outer, 1500 2600 $134.40 $403.20 $537.60
Outer, 1500 2700 $134.40 $403.20 $537.60
Outer, 1500 2800 $134.40 $403.20 $537.60
Outer, 1500 2900 $159.70 $479.10 $638.80
Outer, 1500 3000 $184.90 $554.70 $739.60
Outer, 1500 3300 $186.50 $559.50 $746.00
Outer, 1500 3600 $188.40 $565.20 $753.60
Outer, 1500 4200 $199.50 $598.50 $798.00
Outer, 1500 4600 $236.20 $708.60 $944.80
Outer, 1500 5100 $245.50 $736.50 $982.00
Outer, 1500 5700 $258.50 $775.50 $1,034.00

Outer Drums 1200H

Filter Diameter Daily Rate 3-Day Rate Weekly Rate
Outer, 1200 1200 $49.10 $147.30 $196.40
Outer, 1200 1350 $56.30 $168.90 $225.20
Outer, 1200 1500 $63.60 $190.80 $254.40
Outer, 1200 1650 $70.80 $212.40 $283.20
Outer, 1200 1950 $78.00 $234.00 $312.00
Outer, 1200 2250 $85.10 $255.30 $340.40
Outer, 1200 3000 $135.60 $406.80 $542.40

Pour Boards

Size Daily Rate 3-Day Rate Weekly Rate
600 $7.20 $21.60 $28.80
900 $10.80 $32.40 $43.20
1050 $11.90 $35.70 $47.60
1200 $13.20 $39.60 $52.80
1350 $14.30 $42.90 $57.20
1500 $15.60 $46.80 $62.40
1800 $16.80 $50.40 $67.20
2100 $17.90 $53.70 $71.60
2400 $19.10 $57.30 $76.40

Extension Panels 1500H

Filter Size Daily Rate 3-Day Min Weekly Rate
1500 100 $2.40 $7.20 $9.60
1500 150 $3.60 $10.80 $14.40
1500 300 $7.20 $21.60 $28.80
1500 600 $14.30 $42.90 $57.20
1500 900 $21.50 $64.50 $86.00
1500 1200 $28.60 $85.80 $114.40

Extension Panels 1200H

Filter Size Daily Rate 3-Day Min Weekly Rate
1200 300 $6.10 $18.30 $24.40
1200 600 $11.90 $35.70 $47.60
1200 900 $17.90 $53.70 $71.60

Our standard manhole forms offer the flexibility you need

Manhole Form Hire have hundreds of concrete forms in stock and offer next day delivery to the Greater Brisbane, Melbourne, and Sydney metropolitan areas, and freight delivery to the rest of Australia. When you hire through us, you gain access to completely customisable manhole form options for your project.


Our standard manhole forms have been designed to accommodate the hydrostatic forces and deflection expected at 3.0 H as specified in the AS 4100-1990 Steel Structures when concrete is placed in accordance with the AS 1170.1-2002 SAA Loading Code. When your structure has to incorporate multiple pipes side by side, you can use our flat extension panels to elongate your circle into an oval. If you let us know the length you need to extend to, our combination of the 150mm to 2100mm range of panels will cover it.

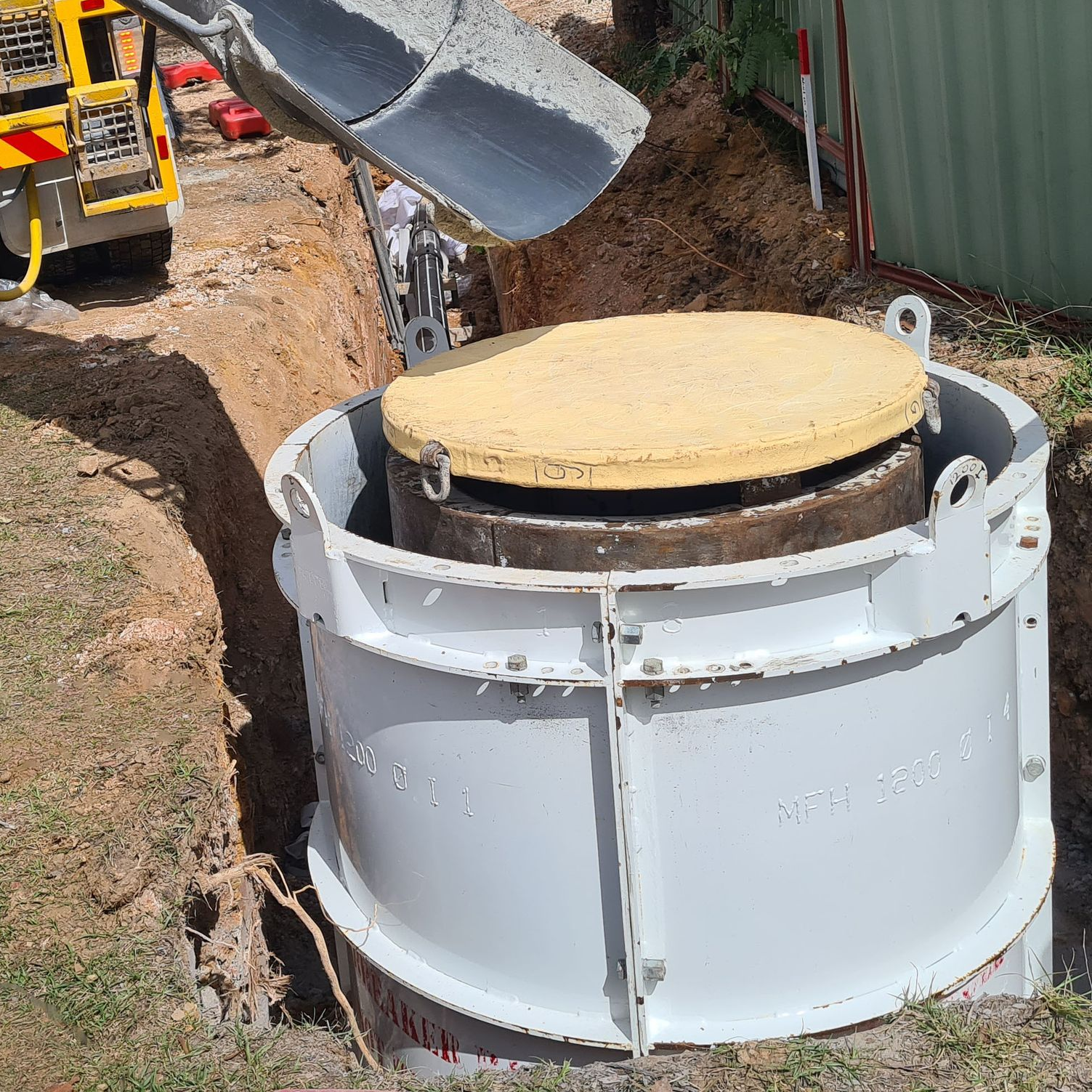

When pumping concrete into a form and the agitator has to back up to the job, getting the chute in the right place is sometimes impossible. We offer a range of pour boards to suit inner forms up to 2400Ø and enable you to load up the platform and direct concrete to where it needs to go.

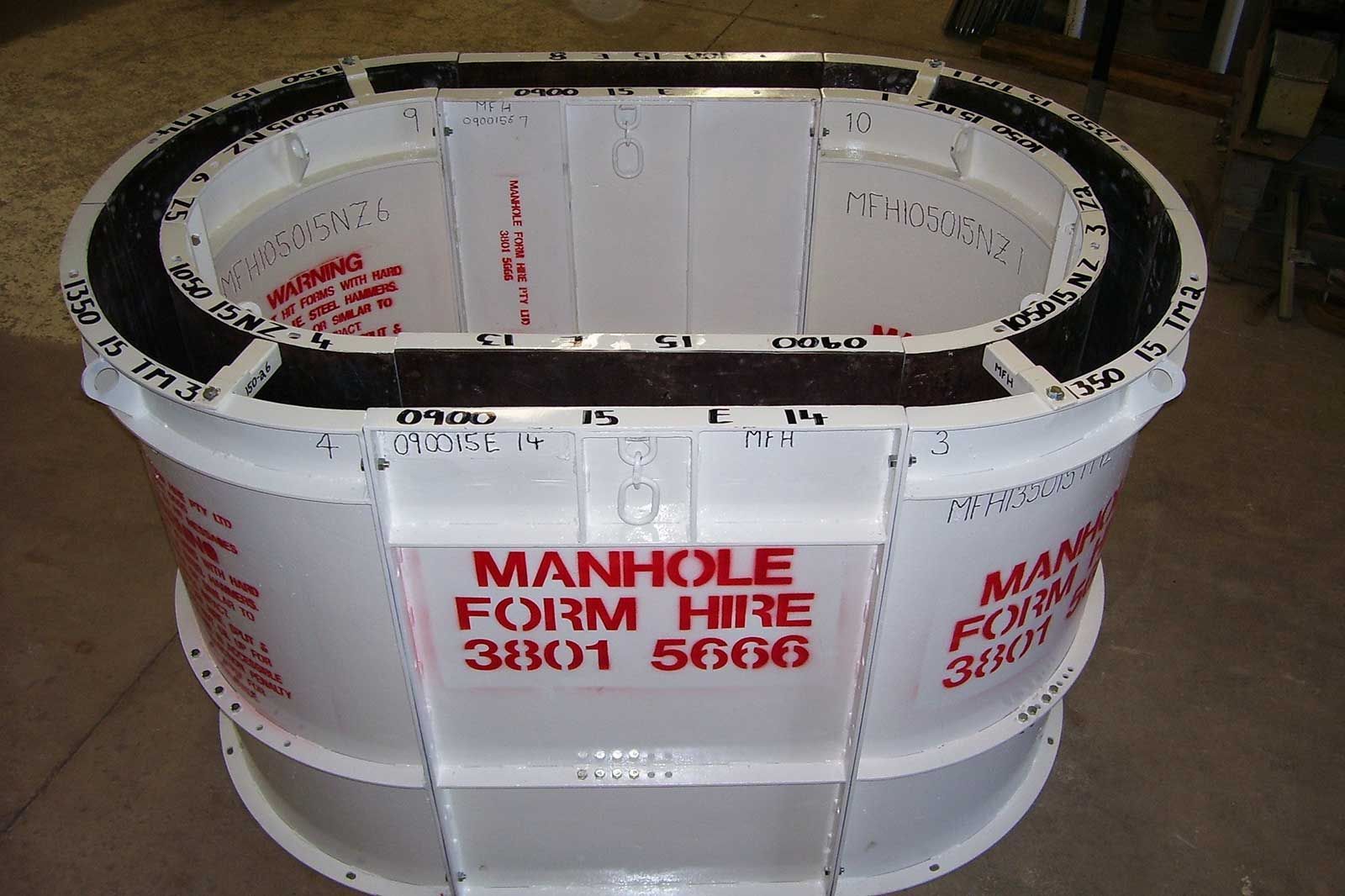

Hire round elongated forms

Do you need quick and easy standard manhole forms from Manhole Form Hire? We’ll help you kickstart your project!

In Need Of Advice

Speak with one of our team members to guide you through all the best options to suit your project.

Why choose Manhole Form Hire?

If you're in need of standard manhole forms for your construction project, Manhole Form Hire has just the solution for you. Our standard manhole forms can be easily customised to accommodate multiple pipes side by side. Our pour boards are highly adaptable, making our standard manhole form hire an ideal solution for any project. We also offer a range of other products for your manhole installation needs.

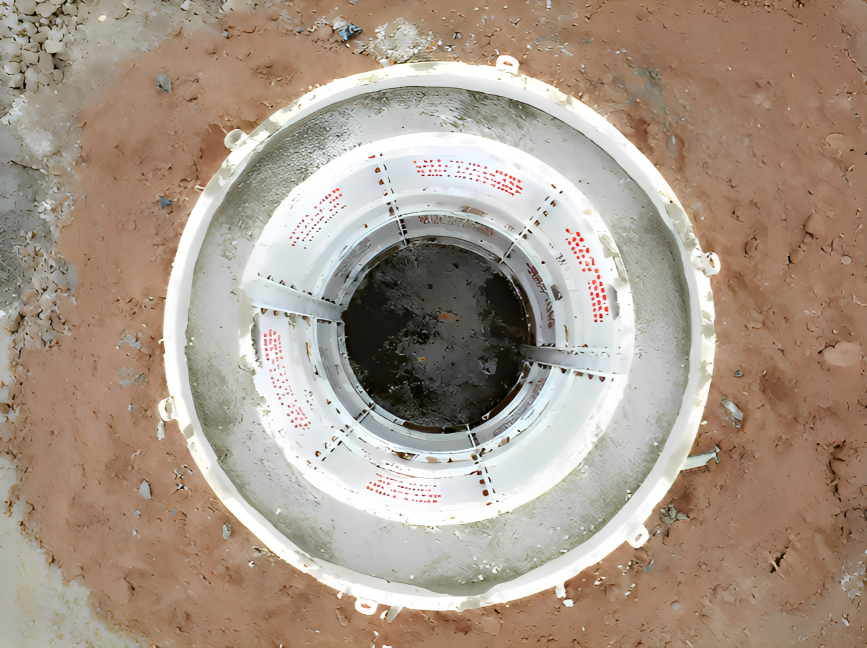

Hire manhole forms

Standard manhole forms contact form

Contact us

Have questions about our standard manhole forms and how you can use our manhole form hire options? Reach out to us today. We provide each of our clients with dedicated customer service based on their unique project needs across Australia, including Queensland, New South Wales, and Victoria. To get in touch, simply fill out our enquiry form or give us a call.
